Home » Products » Insulator Metal Parts » S Cap

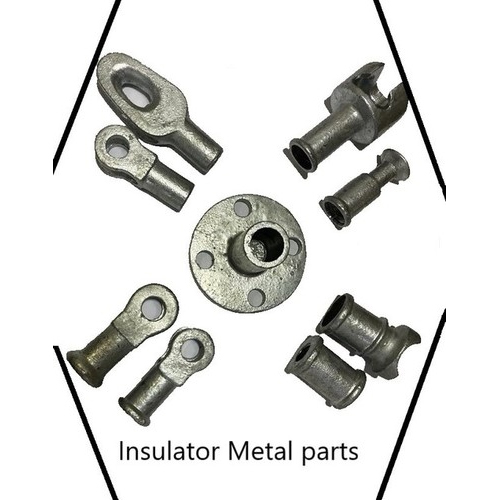

S Cap

S Cap
S Cap
Product Code : 01
Product Description

We have emerged as the leading manufacturer, exporter and supplier of a wide variety of S Cap. This cap is precisely manufactured under the supervision of our professionals using high quality metal alloy and cutting-edge technology in compliance with set industry standards. The offered cap is available in various sizes and finishes to meet the specific needs of our esteemed clients. We offer this S Cap at the most reasonable price to our precious clients.

Features:



  • Fine finish

  • Rust proof

  • High strength

  • Elevated durability

B & S Cap
M.G. Industries (Regd) is one of the leading manufacturer of high quality spheroidal graphite cast iron (Ductile Iron) & malleable iron HT & LT insulator metal parts in India. We manufacture the metal parts required for assembly of HT insulators, transformer distribution sub-stations and power transmission equipment. We are supplying these metal parts to most of the insulator manufacturers of India. The company has an installed capacity of approx. 3000 M.T per annum.

Material Specifications

Malleable iron - As per IS 14329 - 1995 Grade BM 300

Brinell Hardness - 150 BHN Maximum.

Tensile Strength - 33 to 36 Kg/mm² or 325 to 350 mpa

Elongation - 6 to 12%

Spheroidal Graphite Iron - As per IS - 1865
(S.G. Iron / Ductile Iron).


Grade SG 450/10 Grade SG 400/15
Brinell Hardness - 160 - 210 130 - 180
Tensile Strength - min. 45.9 kg/mm² min. 40.8 kg/mm²
Elongation - 10% 15%


Our Product Range is as follows :-
  • High tension insulator metal parts for post cap & pedestal 11 kv, 22 kv, 33 kv.
  • Metal part caps for Disc insulators (B & S) & ( T & C) Type of 45 KN, 70 KN, 90 Kn & 120 KN.
  • Dead end clamps.
  • All types of malleable & S.G. Iron Castings.

Note : We manufacture these electric metal parts with different designs, weight and sizes as per customer's requirement and as per drawing or samples provided by them.
